Installed Options

Exterior

50/50 hinged swing-out rear cargo door w/172-degree door checks

Interval windshield wipers

Solar tinted glass

60/40 hinged side cargo door

Safety

Dual note electric horn

Tire pressure monitoring system (TPMS)

Rear 3-point shoulder/lap safety belts in all positions

Front height adjustable 3-point safety belts

Driver & front passenger 2nd generation airbags

AdvanceTrac w/roll stability control

4-wheel anti-lock braking system (ABS)

Interior

Courtesy light switches for all doors

Rear cargo light

Dual A-pillar grab handles

Black cowl side trim panels

(4) 12-volt pwr points-inc: (2) instrument panel, (1) glove box, (1) located rear of driver

Tilt steering wheel

Black plastic stepwell pads

Slim line color-keyed engine cover console-inc: dual bin stowage, (3) cup holders

Front inboard armrest

High capacity front & rear air conditioning

Vehicle Details

Cooling System

Total Cooling System Capacity (qts): 25.9

Doors

Side Door Type: Hinged 60/40

Frame

Frame Type: Single-Channel

Vehicle

Rear Door Type: Dual Hinged

Emissions

EPA Greenhouse Gas Score: 1

Tons/yr of CO2 Emissions @ 15K mi/year: 14.1

Fuel Tank

Fuel Tank Capacity, Approx (gal): 33.0

Fuel Tank Location: Midship

Mileage

Fuel Economy Est-Combined (MPG): 13

EPA Fuel Economy Est - City (MPG): 11

EPA Fuel Economy Est - Hwy (MPG): 15

Summary

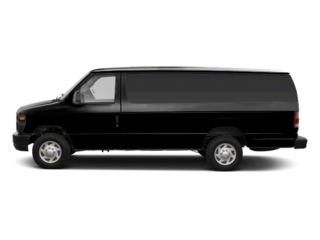

Vehicle Name: Ford Econoline Wagon

Body Style: Passenger Van

Body Code: 138.0" WB

Electrical

Cold Cranking Amps @ 0° F (Primary): 650

Maximum Alternator Capacity (amps): 120

Maximum Alternator Watts: 1620

Trailering

Dead Weight Hitch - Max Trailer Wt. (lbs): 5000

Dead Weight Hitch - Max Tongue Wt. (lbs): 500

Wt Distributing Hitch - Max Trailer Wt. (lbs): 6500

Wt Distributing Hitch - Max Tongue Wt. (lbs): 975

Steering

Steering Type: Pwr Recirculating Ball

Steering Ratio (:1), On Center: 17.0

Steering Ratio (:1), At Lock: 17.0

Turning Diameter - Curb to Curb (ft): 48.6

Turning Diameter - Wall to Wall (ft): 50.0

Wheels

Front Wheel Size (in): 16 x 7.0

Rear Wheel Size (in): 16 x 7.0

Spare Wheel Size (in): 16 X 7.0

Front Wheel Material: Steel

Rear Wheel Material: Steel

Spare Wheel Material: Steel

Brakes

Brake Type: Pwr

Brake ABS System: Four Wheel

Disc - Front (Yes or ): Yes

Disc - Rear (Yes or ): Yes

Front Brake Rotor Diam x Thickness (in): 13.6 x 0.5

Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.4

Weight Information

Gross Axle Wt Rating - Front (lbs): 3400

Gross Axle Wt Rating - Rear (lbs): 6084

Curb Weight - Front (lbs): 2897

Curb Weight - Rear (lbs): 3535

Gross Vehicle Weight Rating Cap (lbs): 9100

Gross Combined Wt Rating (lbs): 13000

Engine

Engine Order Code: 99L

Engine Type: 5.4l V8

Displacement: 5.4L/330

Fuel System: Electronic Fuel Injection

SAE Net Horsepower @ RPM: 255 @ 4500

SAE Net Torque @ RPM: 350 @ 2500

Engine Oil Cooler: Yes

Transmission

Drivetrain: Rear Wheel Drive

Trans Order Code: 44Q

Trans Type: 4

Trans Description Cont.: Automatic 4-speed

First Gear Ratio (:1): 2.84

Second Gear Ratio (:1): 1.55

Third Gear Ratio (:1): 1.00

Fourth Gear Ratio (:1): 0.70

Reverse Ratio (:1): 2.32

Tires

Front Tire Order Code: T38

Rear Tire Order Code: T38

Front Tire Size: LT245/75R16E

Rear Tire Size: LT245/75R16E

Spare Tire Size: LT245/75R16E

Front Tire Capacity (lbs): 3042

Rear Tire Capacity (lbs): 3042

Spare Tire Capacity (lbs): 3042

Revolutions/Mile @ 45 mph - Front: - TBD -

Revolutions/Mile @ 45 mph - Rear: - TBD -

Revolutions/Mile @ 45 mph - Spare: - TBD -

Suspension

Suspension Type - Front: Independent

Suspension Type - Rear: Live Axle

Spring Capacity - Front (lbs): 3100

Spring Capacity - Rear (lbs): 6195

Axle Type - Front: Twin I-Beam

Axle Type - Rear: Semi-Floating

Axle Capacity - Front (lbs): 5000

Axle Capacity - Rear (lbs): 6340

Axle Ratio (:1) - Rear: 3.73

Shock Absorber Diameter - Front (mm): 35.0

Shock Absorber Diameter - Rear (mm): 35.0

Stabilizer Bar Diameter - Front (in): 1.0

Cargo Area Dimensions

Cargo Area Length @ Floor to Console (in): 158.7

Cargo Area Length @ Floor to Seat 1 (in): 140.6

Cargo Area Length @ Floor to Seat 2 (in): 104.9

Cargo Area Length @ Floor to Seat 3 (in): 71.4

Cargo Area Length @ Floor to Seat 4 (in): 40.8

Cargo Area Width @ Beltline (in): - TBD -

Cargo Box Width @ Wheelhousings (in): 51.1

Cargo Box (Area) Height (in): 51.9

Cargo Volume to Seat 1 (ft³): 278.3

Cargo Volume to Seat 2 (ft³): - TBD -

Cargo Volume to Seat 3 (ft³): - TBD -

Cargo Volume to Seat 4 (ft³): - TBD -

Exterior Dimensions

Wheelbase (in): 138.0

Length, Overall w/rear bumper (in): 236.4

Width, Max w/o mirrors (in): 79.4

Height, Overall (in): 82.3

Overhang, Front (in): 34.9

Overhang, Rear w/bumper (in): 63.8

Ground to Top of Load Floor (in): 29.1

Ground Clearance, Front (in): - TBD -

Ground Clearance, Rear (in): - TBD -

Rear Door Opening Height (in): 48.0

Rear Door Opening Width (in): 54.4

Side Door Opening Height (in): 47.2

Side Door Opening Width (in): 44.8

Step Up Height - Front (in): - TBD -

Step Up Height - Side (in): - TBD -

Interior Dimensions

Passenger Capacity: 15

Front Head Room (in): 42.0

Front Leg Room (in): 40.0

Front Shoulder Room (in): 68.1

Front Hip Room (in): 65.6

Second Head Room (in): 40.2

Second Leg Room (in): 38.8

Second Shoulder Room (in): 72.8

Second Hip Room (in): 68.6

Third Head Room (in): 40.1

Third Leg Room (in): 40.0

Third Shoulder Room (in): 71.7

Third Hip Room (in): 66.8

Fourth Head Room (in): 39.6

Fourth Leg Room (in): 39.4

Fourth Shoulder Room (in): 69.4

Fourth Hip Room (in): 66.1

Fifth Head Room (in): 37.4

Fifth Leg Room (in): 37.0

Fifth Shoulder Room (in): 67.5

Fifth Hip Room (in): 65.8
